5.8G Analog Receiver Module Adapter Board for DJI FPV Goggles V2

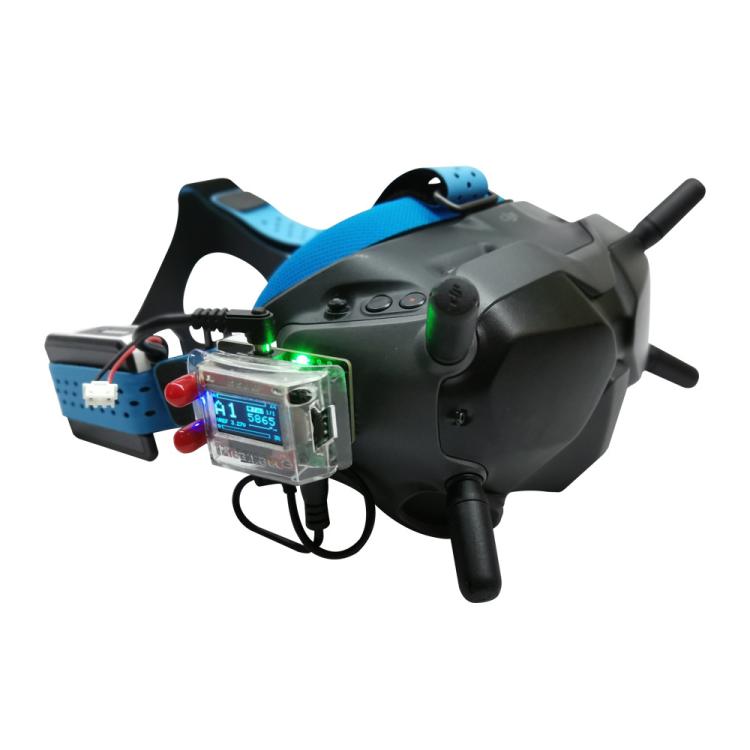

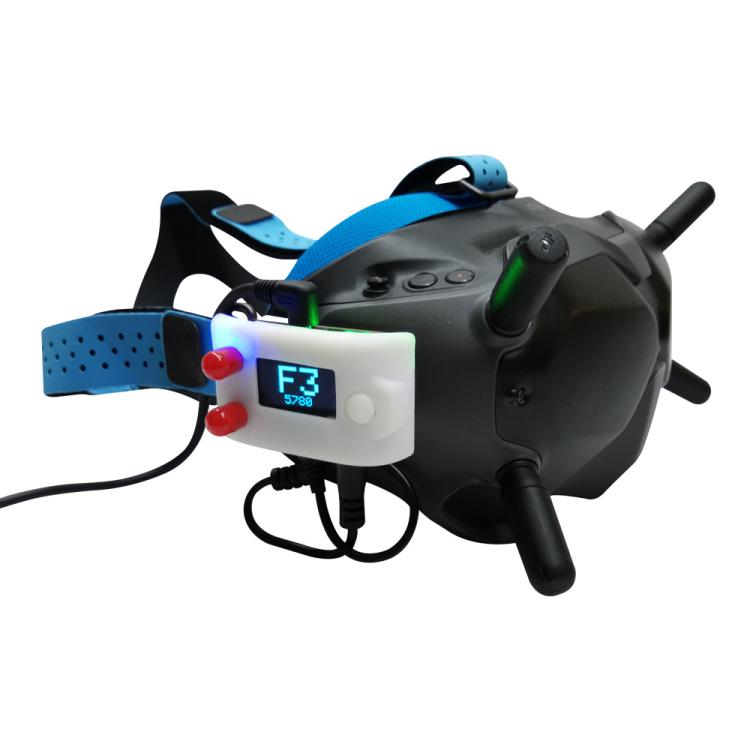

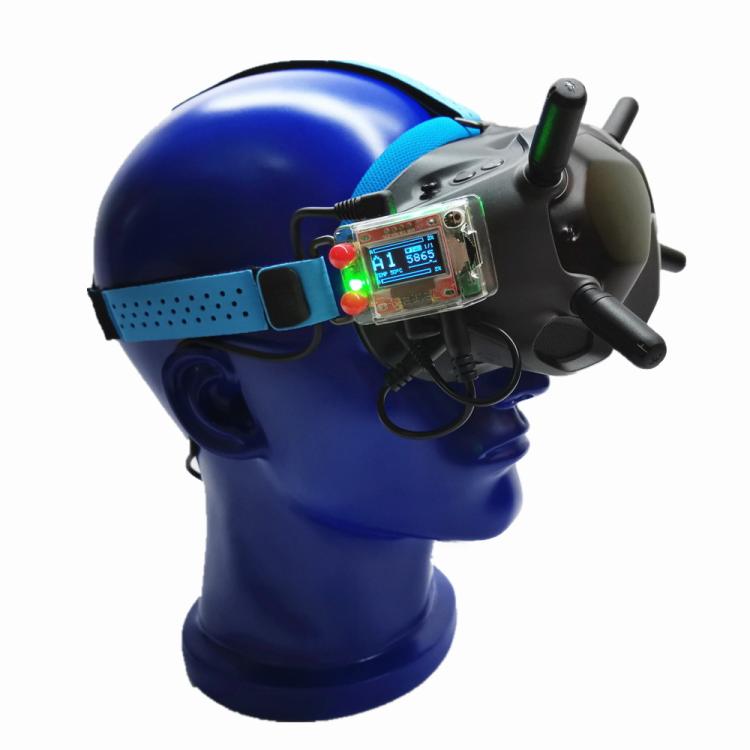

Expand your DJI FPV Goggles V2 with third-party 5.8G receiver compatibility — no drilling, no permanent modifications required. The 5.8G RX PORT 2.0 mounts non-destructively to the side of your DJI goggles using the existing headband ring screw, giving you access to Fat Shark and compatible third-party receiver systems.

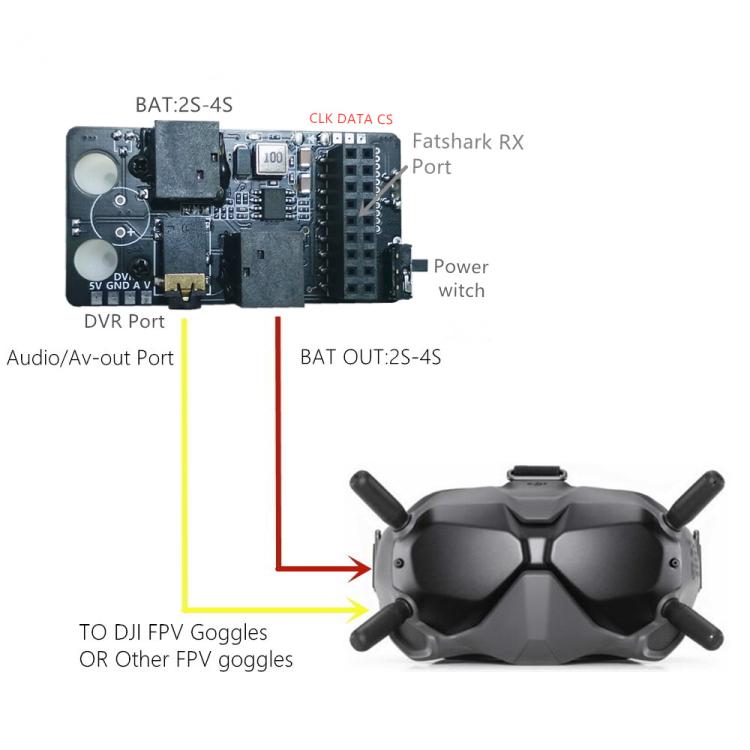

Once fitted, video and audio signals are routed cleanly to the high-quality DJI screen — ideal for viewing or recording FPV footage with your preferred receiver setup.

Key Specifications

• Dimensions: 48 × 28 × 12 mm
• Weight: 10 g (excluding adapter cable)
• Power Input: 2S–4S (DC 5.5 × 2.1)
• Internal Voltage: 5V 3A (with pad for output)
• Power Output: 2S–4S (DC 5.5 × 2.1)
• Signal Input: Standard Fat Shark receiver port
• Signal Output: Standard audio/video
• Compatible Receivers: Reaxacc Furious and other Fat Shark interface receivers

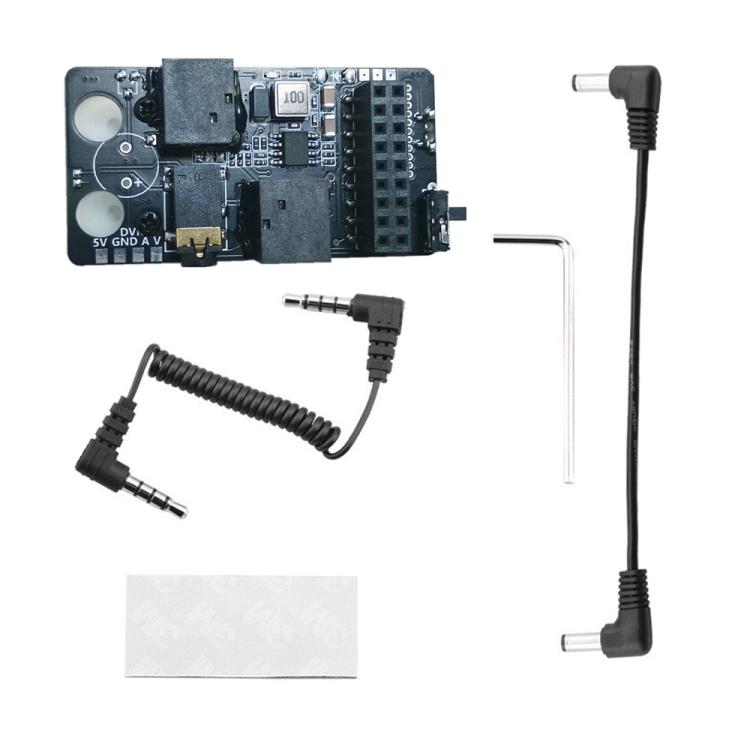

What's in the Box

• Adapter mounting block and screw × 1
• Audio and video cable × 1
• Power cable × 1

Package Details

• Package Weight: 0.05 kg / 0.12 lb
• Package Size: 8 × 8 × 5 cm / 3.15 × 3.15 × 1.97 inch
